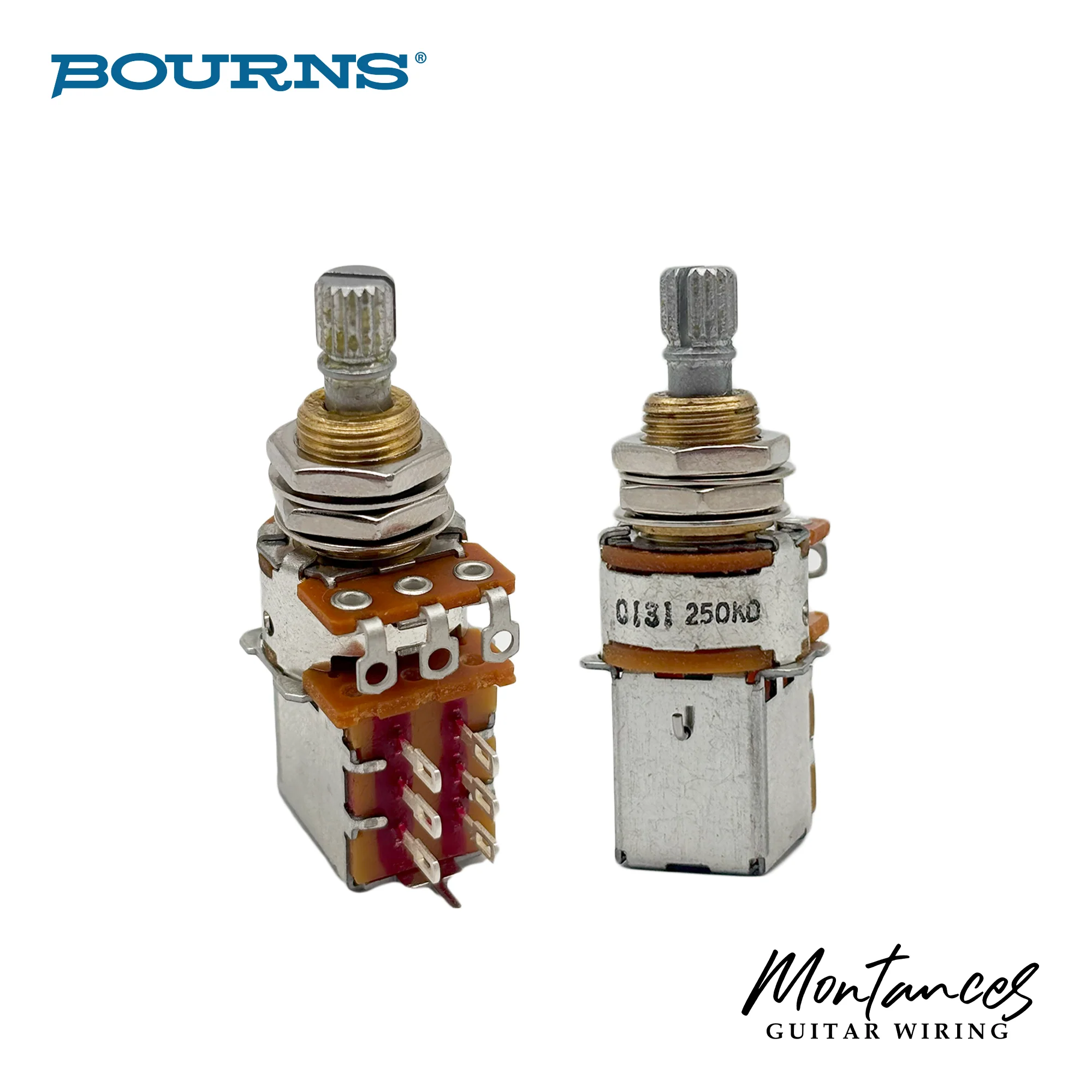

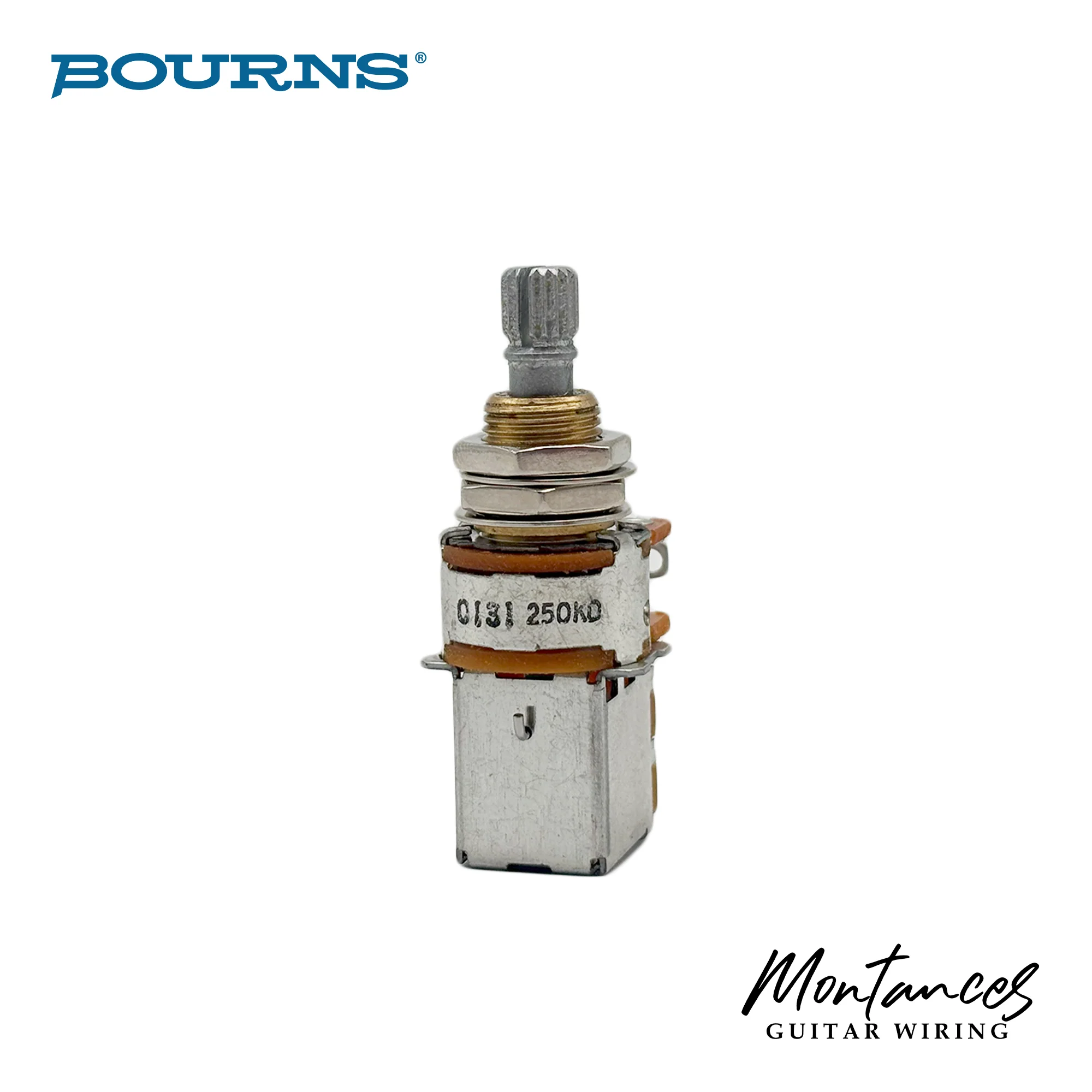

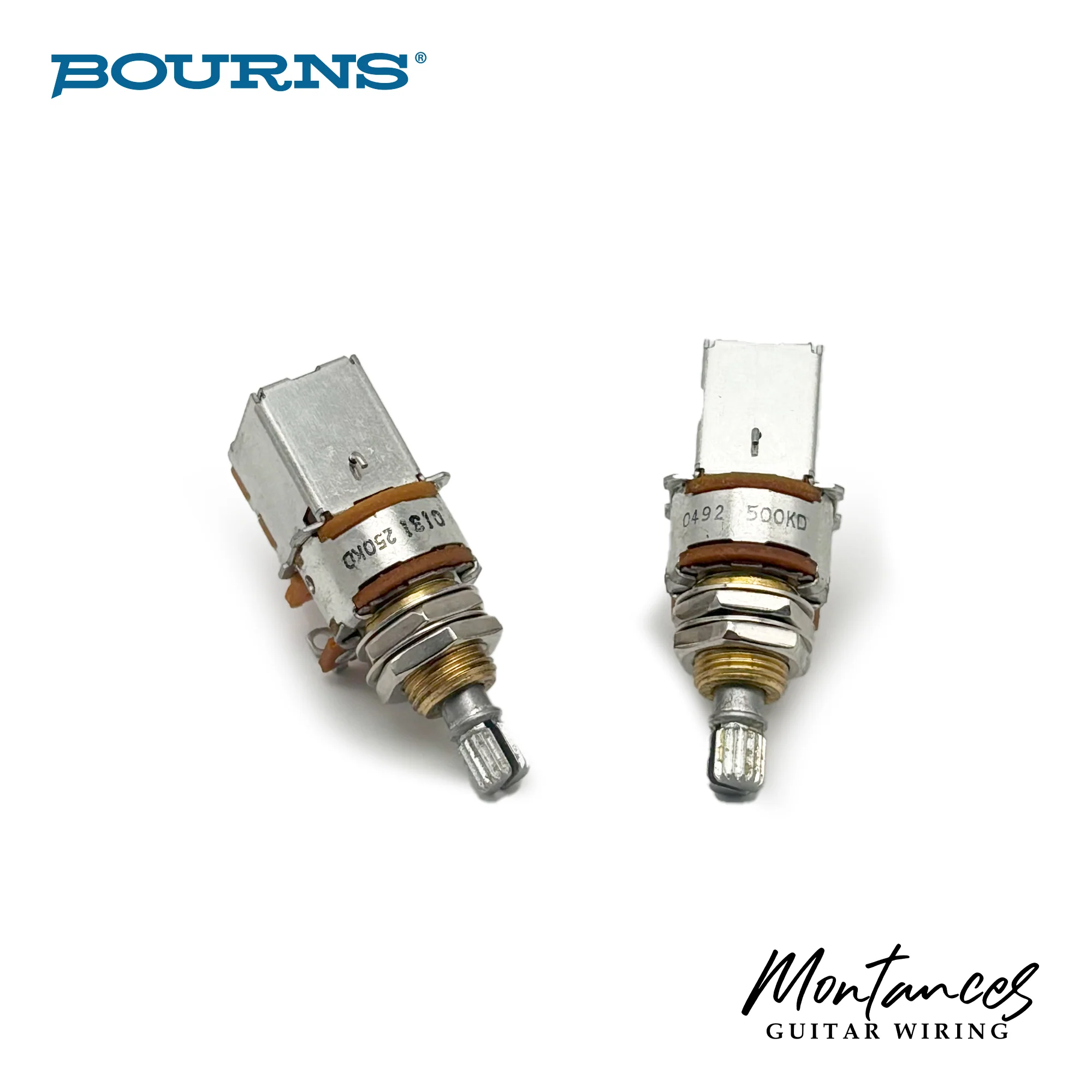

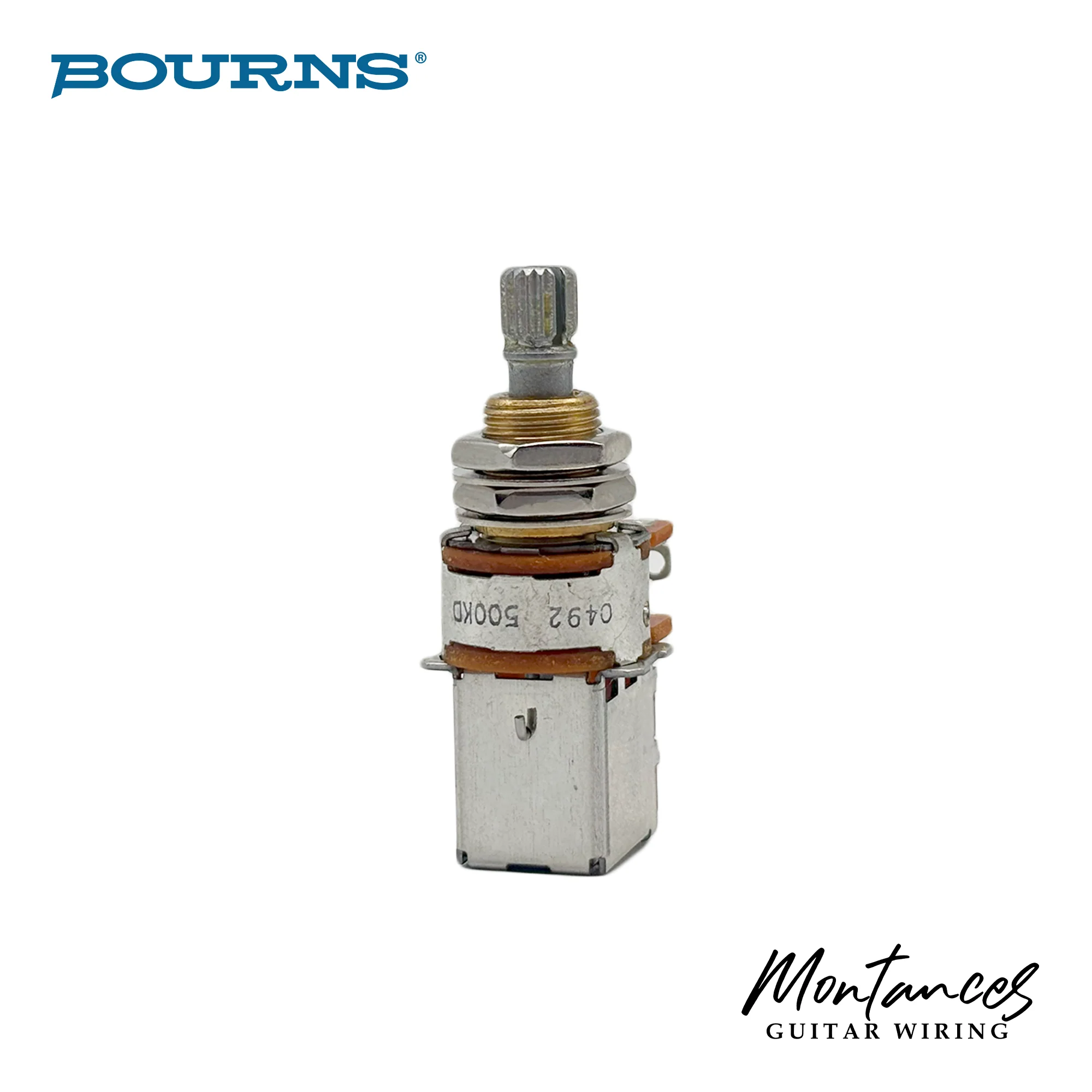

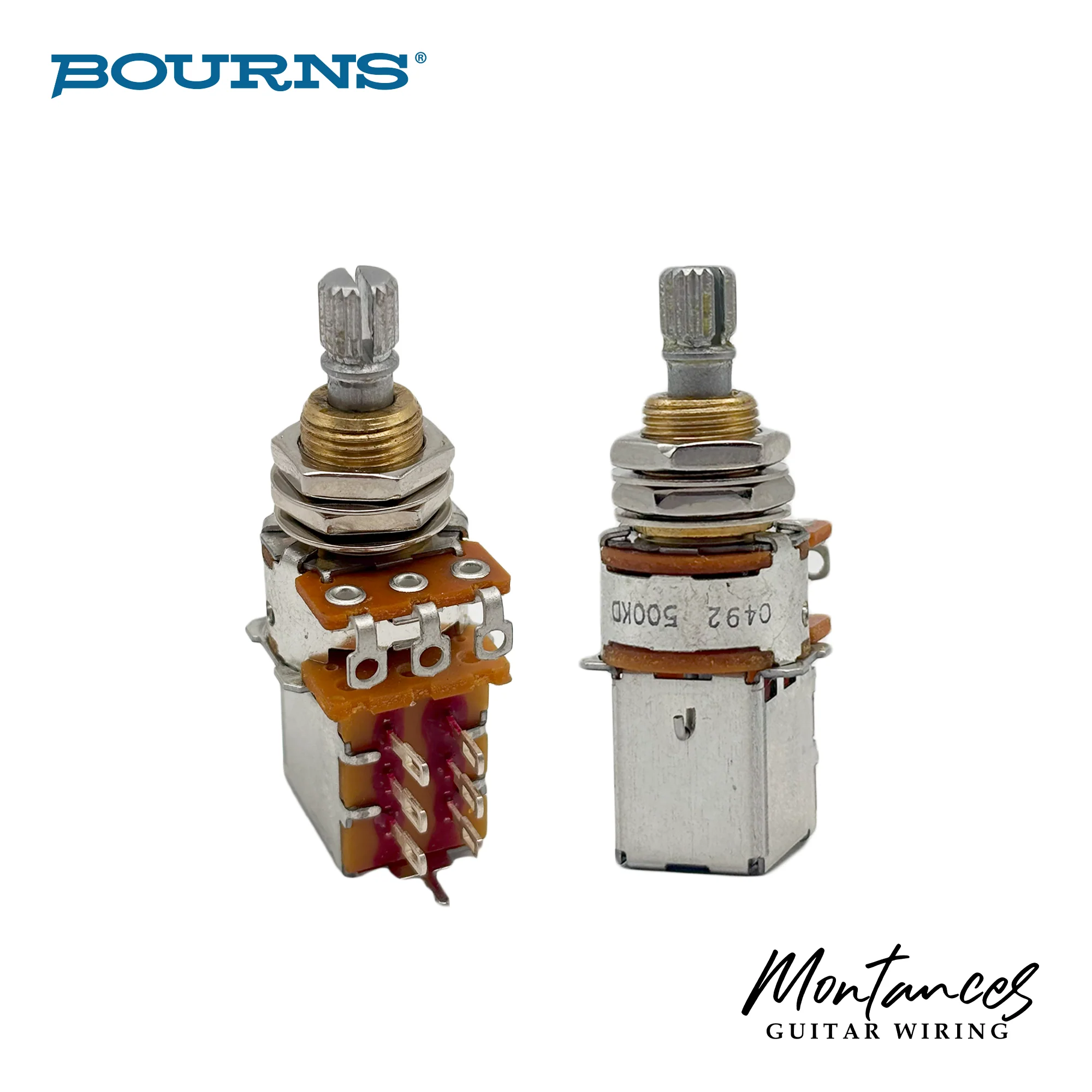

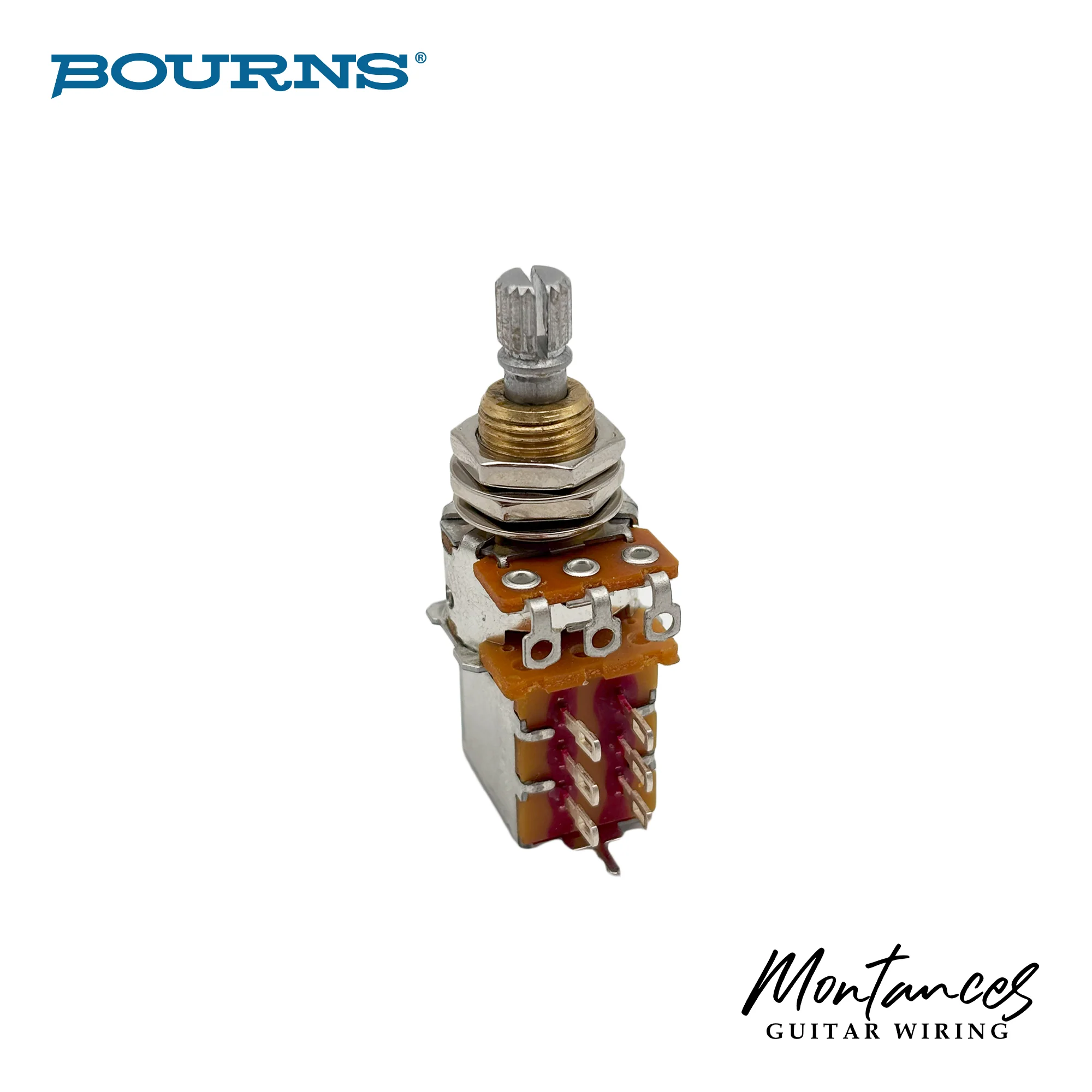

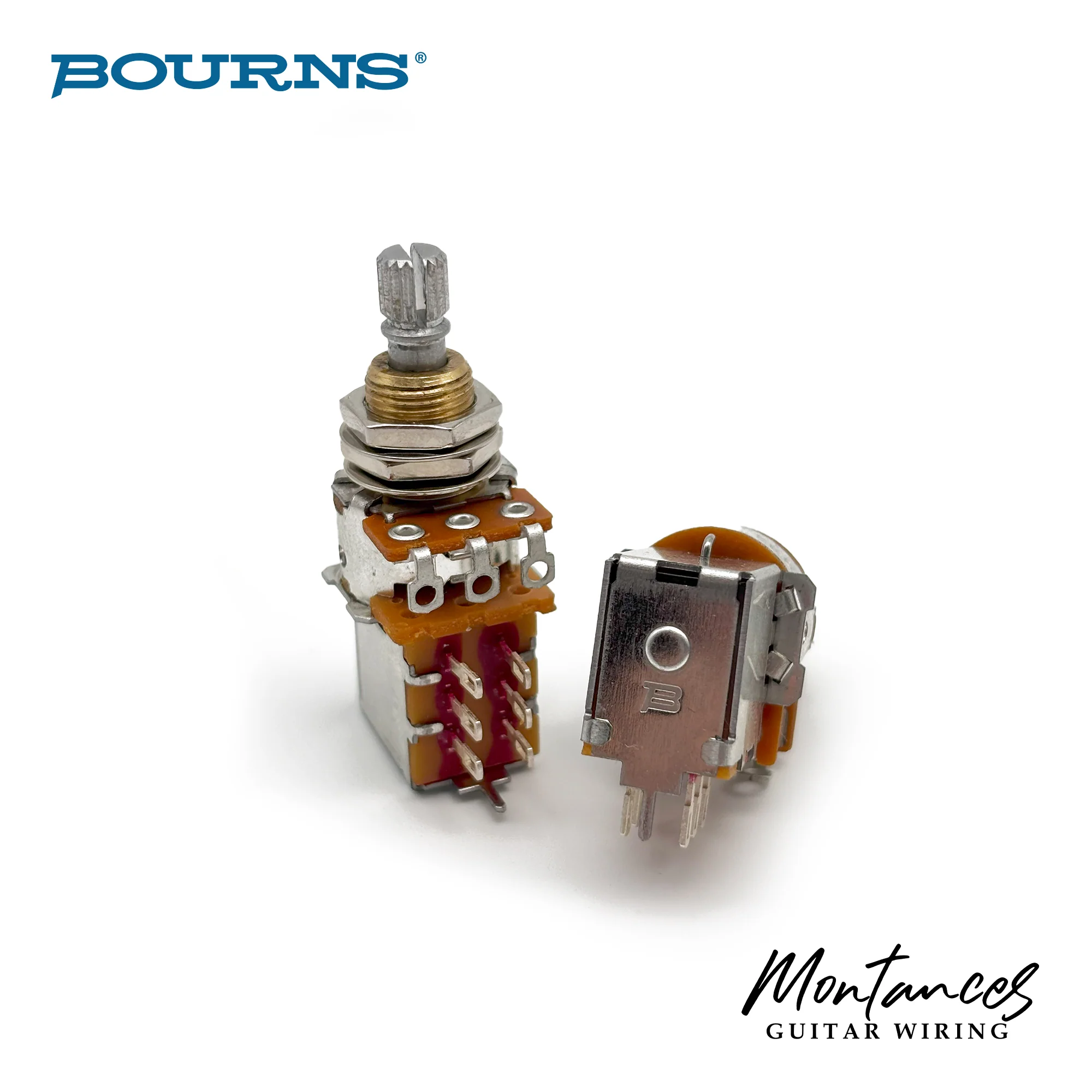

Bourns Push-Push Potentiometers 3/8” Shaft (US Specs)

Premium Quality Control for Guitar and Bass Wiring Mods

These Bourns push-push potentiometers are built for durability and precision. Designed specifically for guitar and bass upgrades, they are ideal for wiring mods such as coil splitting, series-parallel switching, and in-phase or out-of-phase setups.

Featuring a reliable push-push DPDT switch and compact 17mm body, these pots offer smooth operation and long life, making them a top choice for electronics upgrades.

---

Features

• Premium-grade construction for long-lasting performance

• Push-push DPDT switch mechanism

• Compatible with standard US mounting (3/8” shaft)

• Mini 17mm body fits most guitar and bass control cavities

• Knurled split shaft with 18 splines for push-on knobs

• Ideal for wiring mods and tonal flexibility

---

Technical Specifications

• Mounting Hole Diameter: 3/8” (9.5mm)

• Bushing Height: 3/8”

• Pot Body: 17mm (Mini size)

• Shaft Type: Knurled split shaft, 18 splines

• Switch Type: DPDT

---

Available Options

• Audio Taper 250k

• Audio Taper 500k

---

Package Includes

• 1 Bourns push-push potentiometer

• 2 sets of hex nut and washer

---

Notes

• For guitars made in Asia, you may need to widen the control hole to accommodate the 3/8” shaft

• This 3/8” bushing length is suitable for most applications

• A 3/4” bushing version is available for deeper or thicker control cavities
