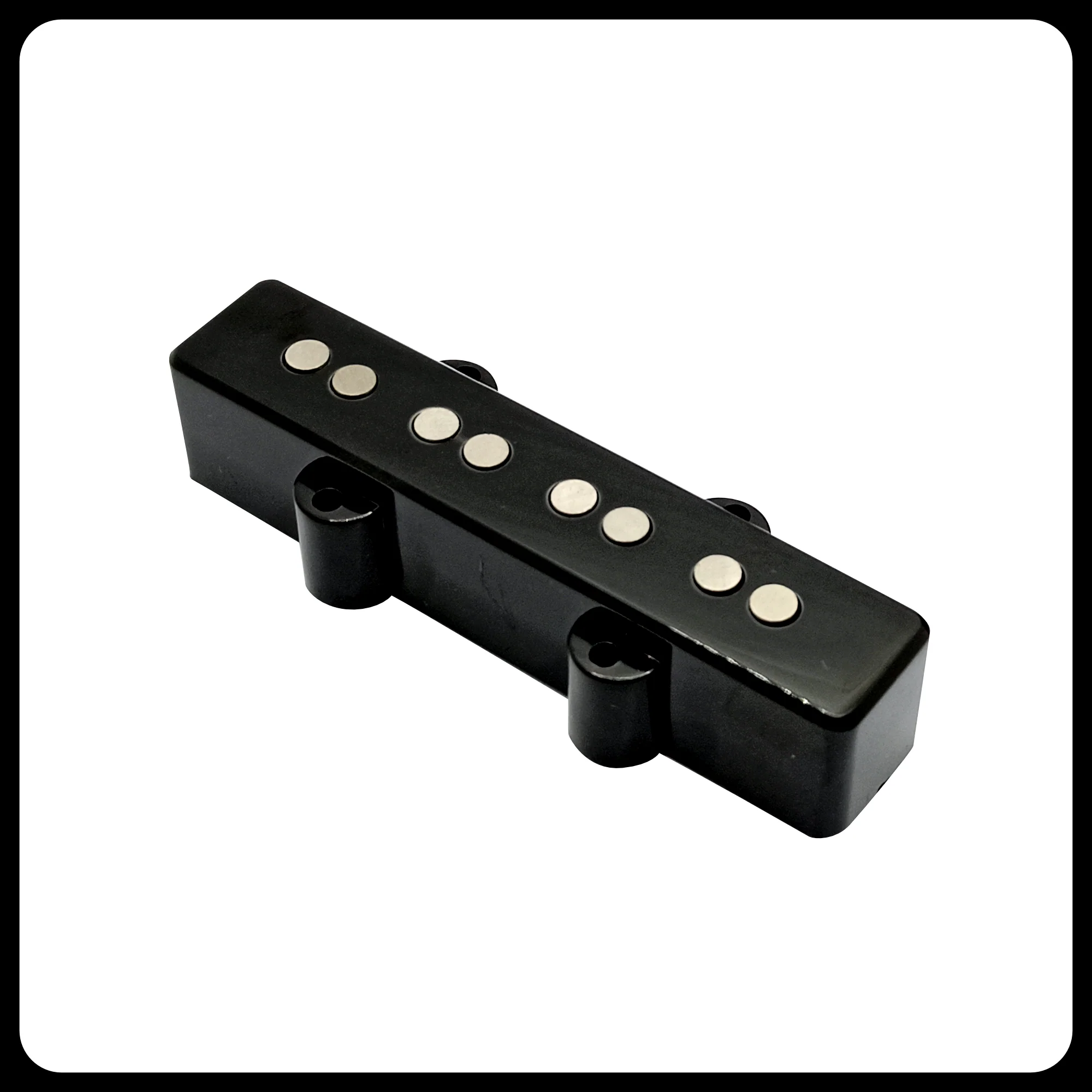

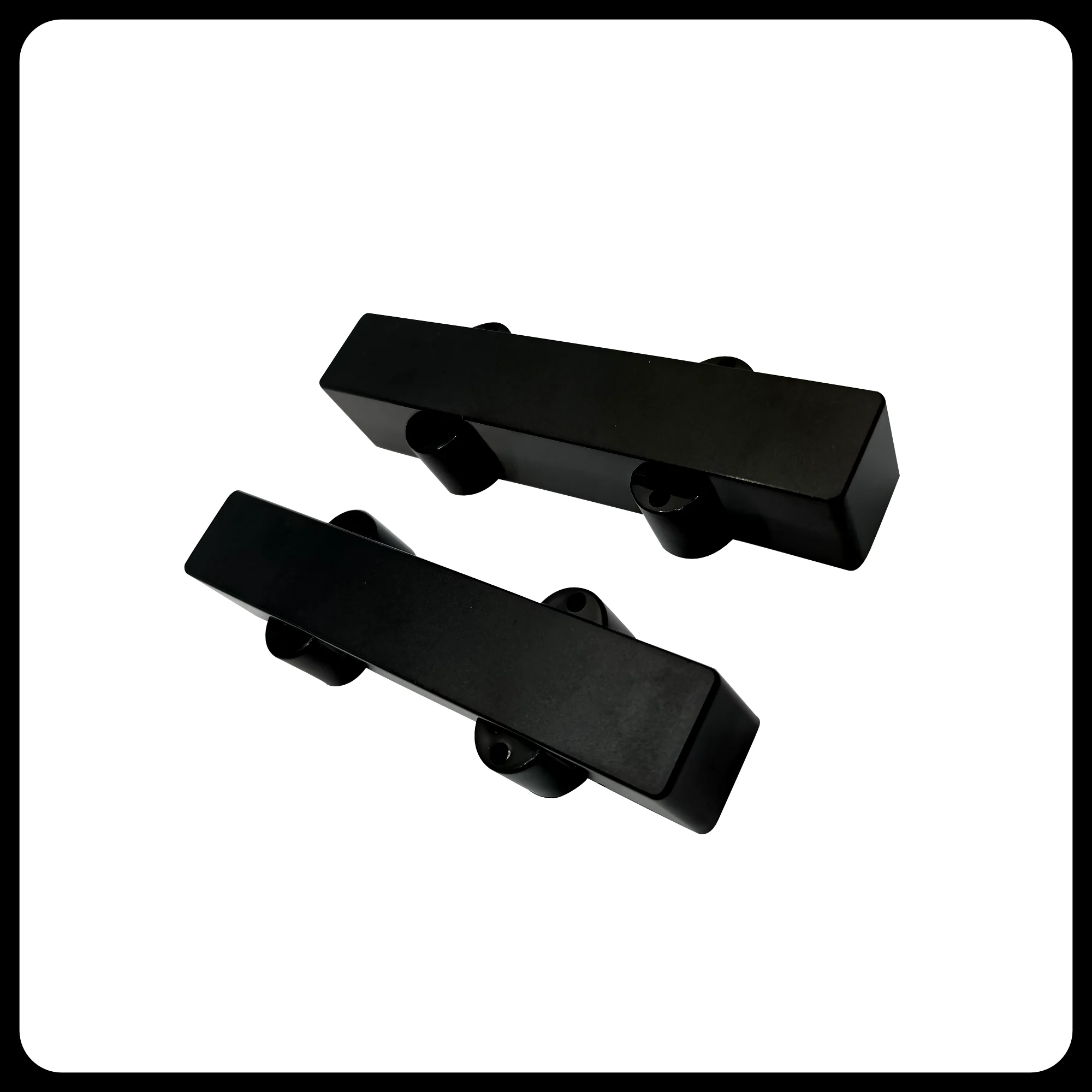

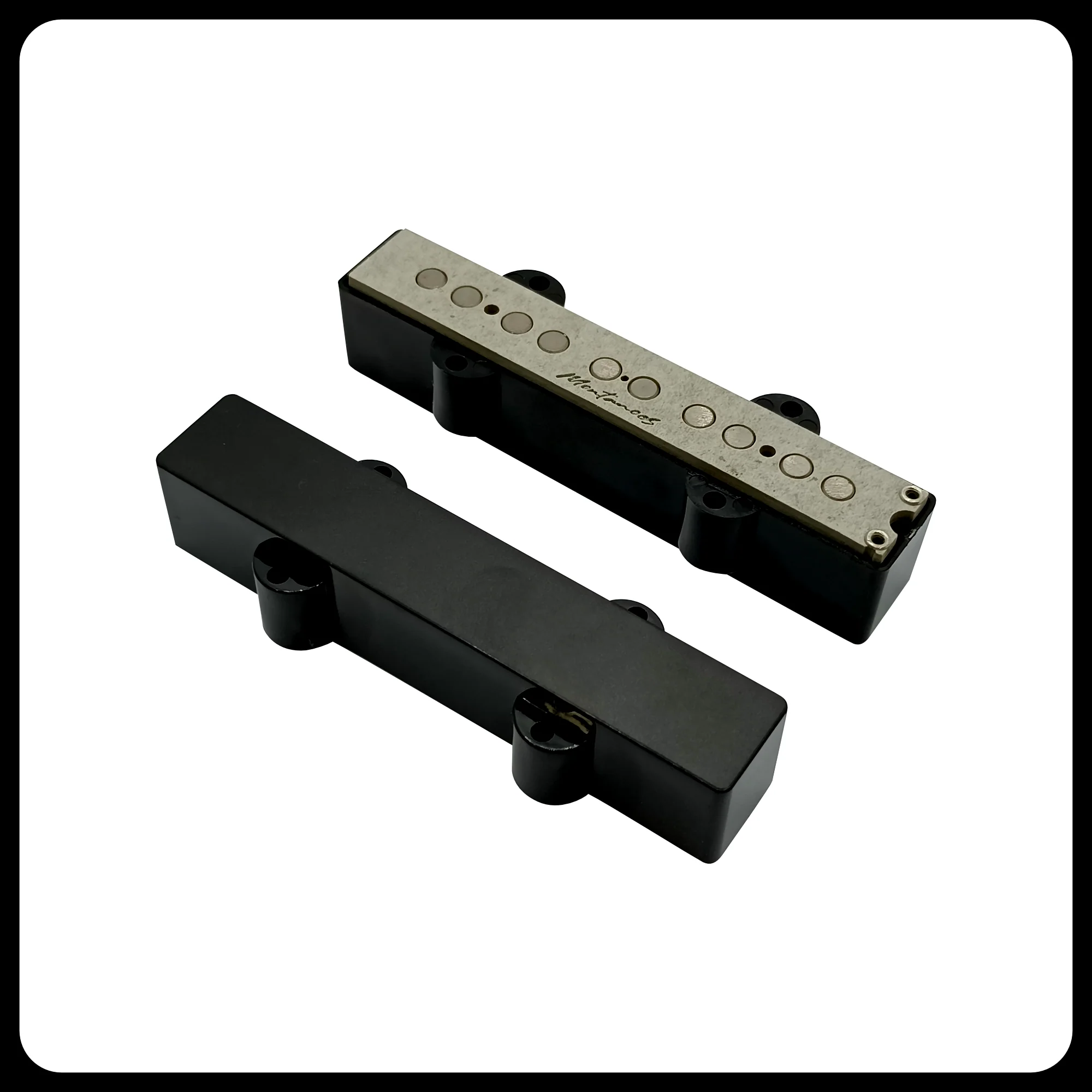

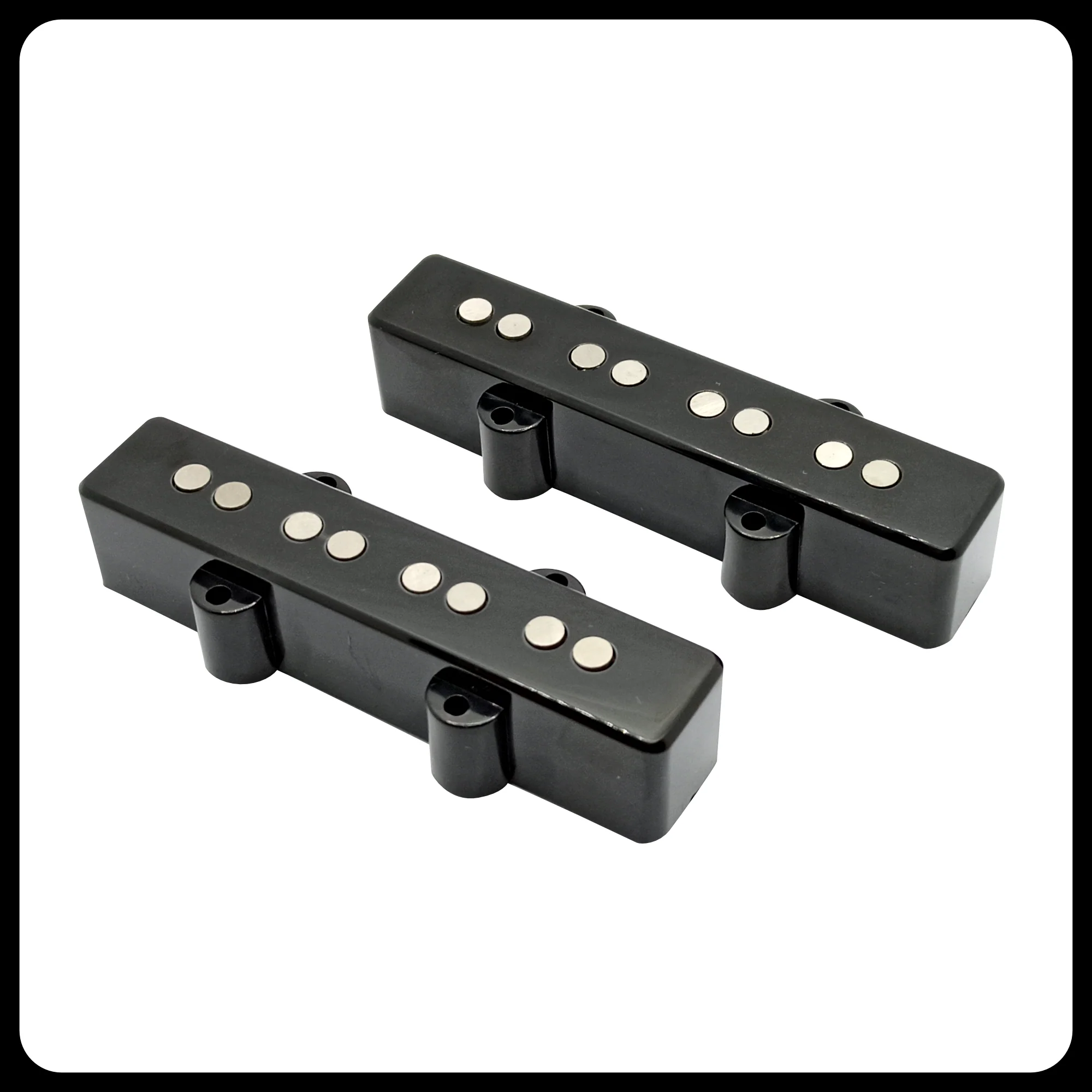

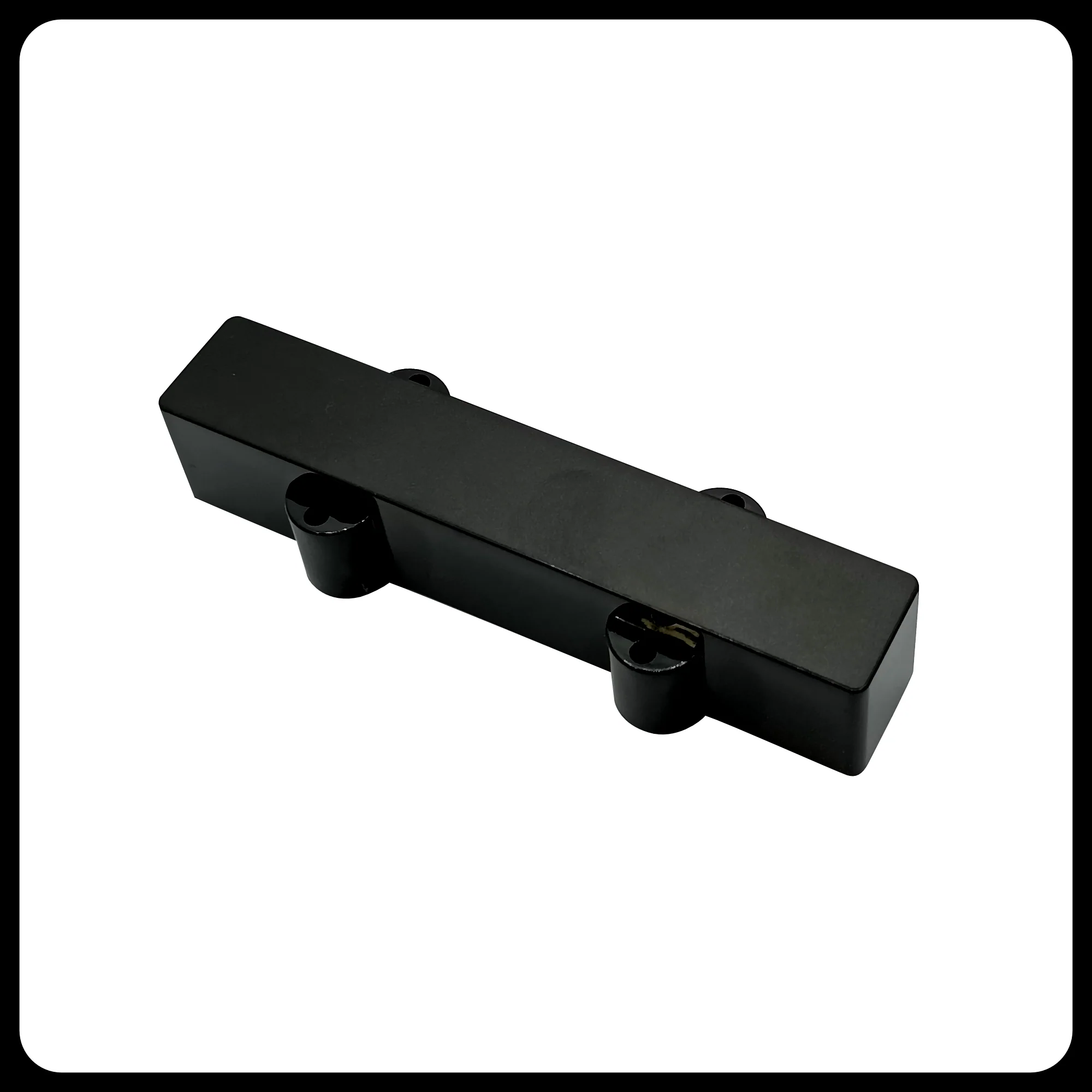

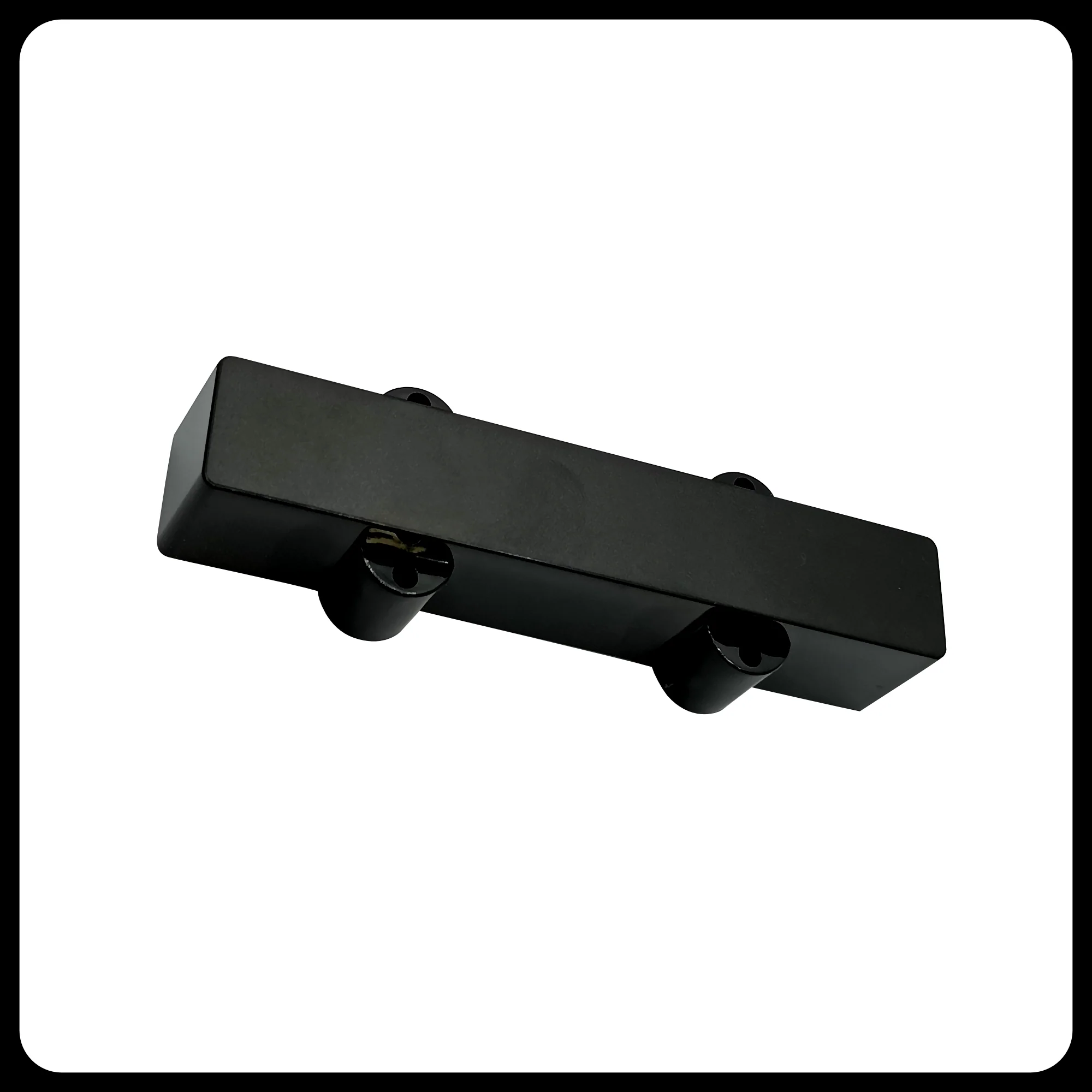

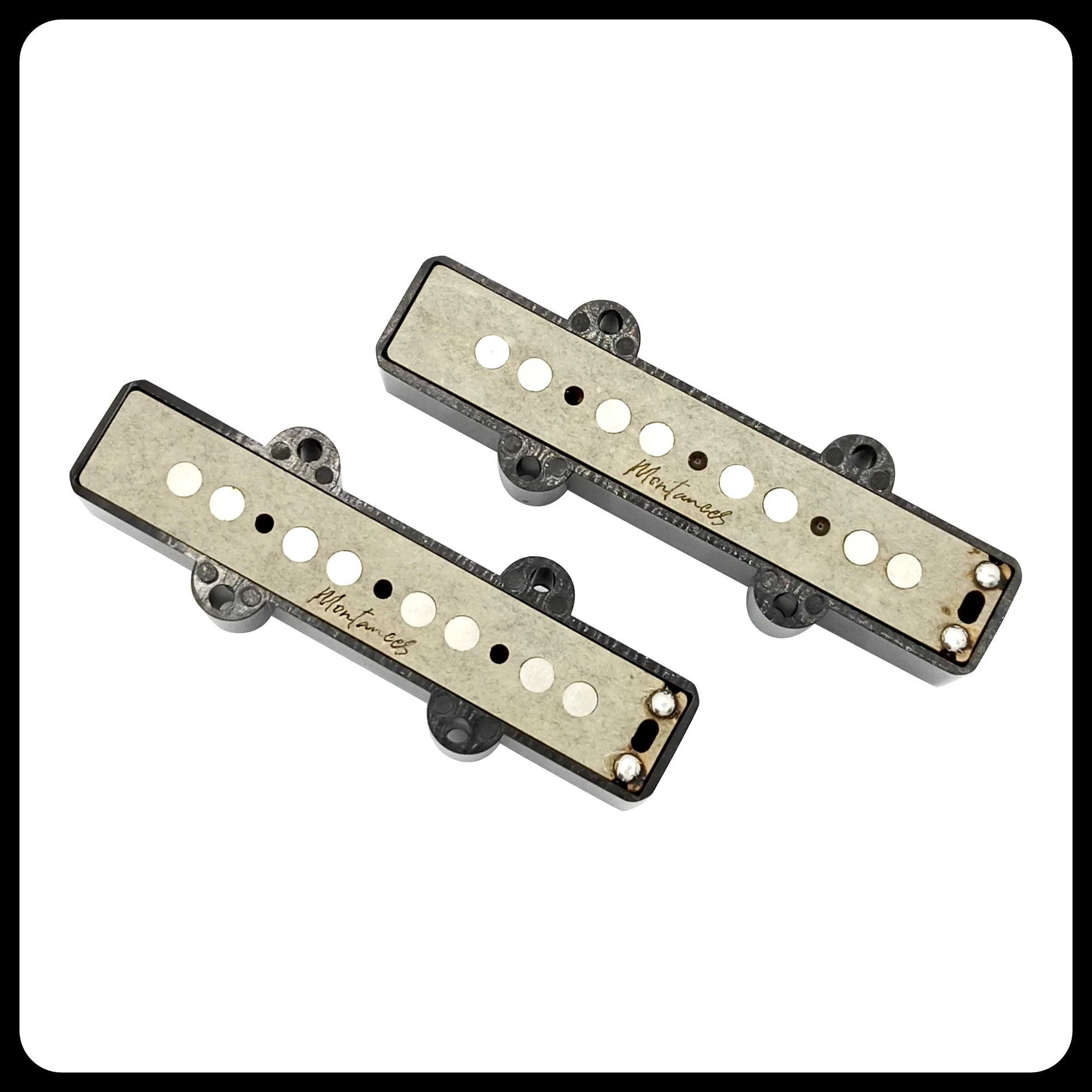

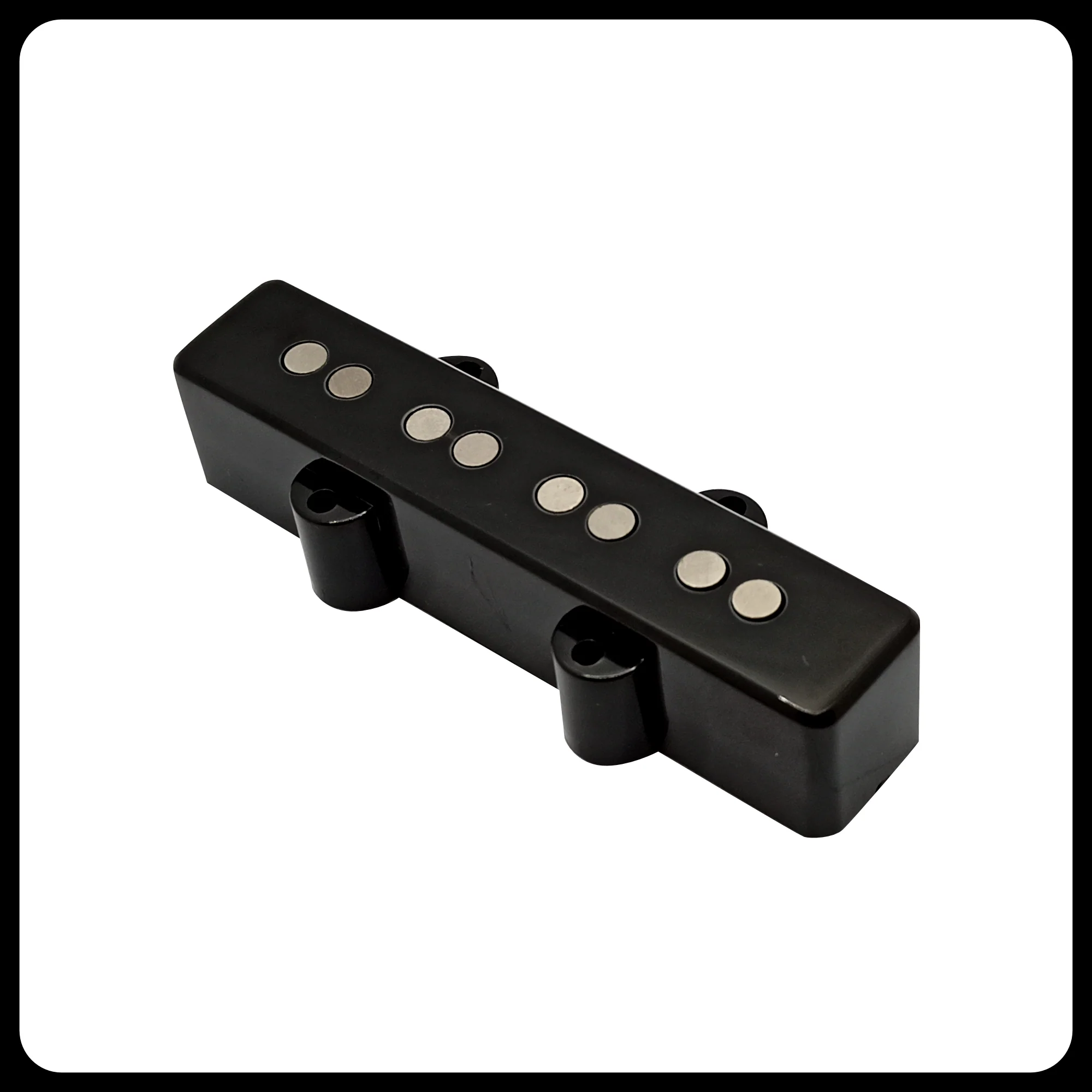

Montances Modern Jazz Bass Pickup

Precision articulation for the modern low-end architect. The Montances Modern Jazz Bass Series is engineered for the bassist who demands tighter lows, assertive mids, and a response that cuts through the densest arrangements. By utilizing a higher-output wind and U.S.-grade Alnico V magnets, this set retains the organic warmth of a passive pickup while delivering the immediate attack and clarity typically associated with active systems. It is the ultimate solution for Gospel, Fusion, and Rock players who need their tone to remain defined and punchy, even at the bottom of the B-string.

Designed and handcrafted in the Philippines.

Key Features & Sonic Benefits:

• Optimized High-Output Profile: Higher DCR values provide stronger output and greater touch sensitivity, driving your preamp for a thick, authoritative presence.
• Modern-Voiced Alnico V: Tuned for a tight, disciplined low-end and rich, punchy mids, ensuring that fast runs and complex chords remain articulate.

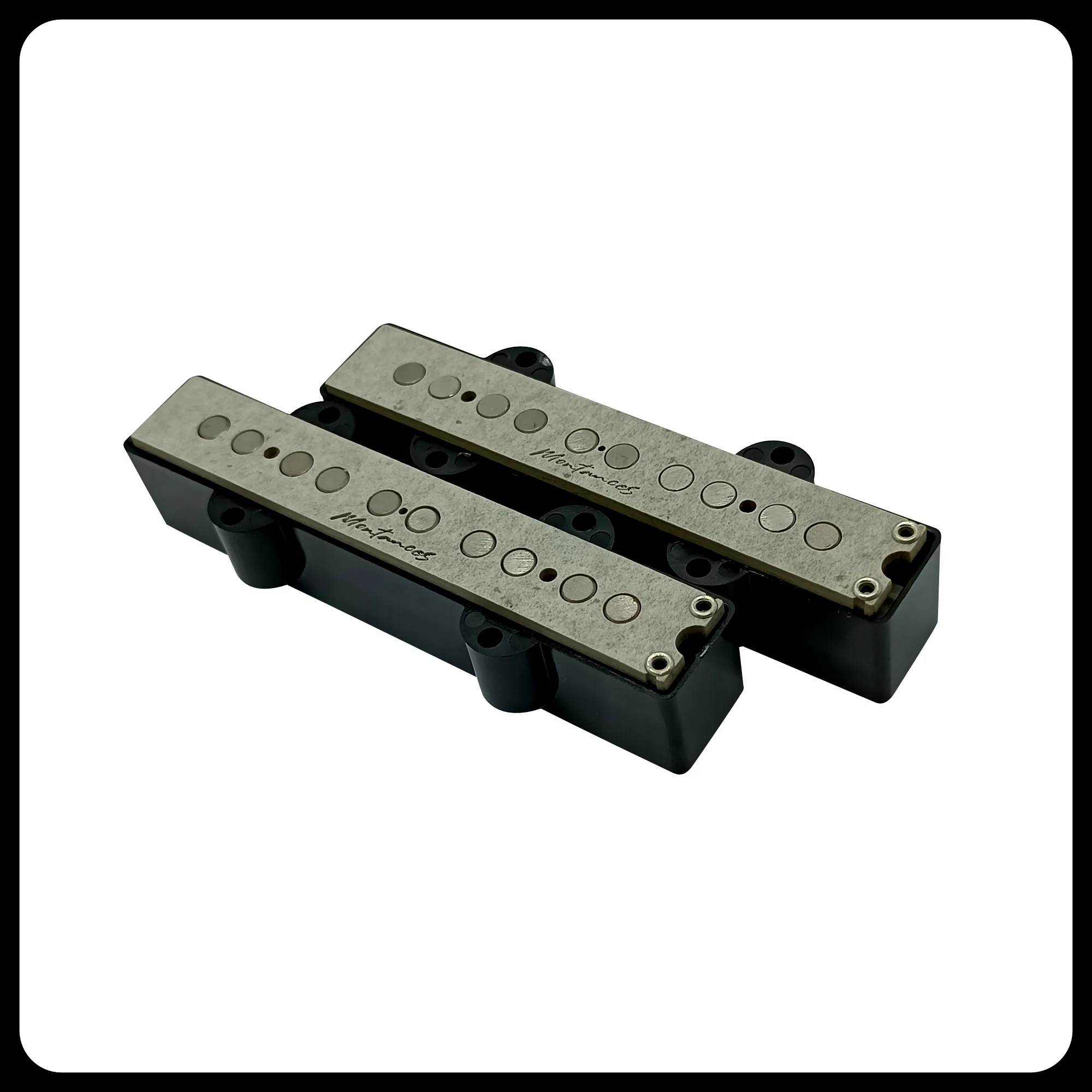

• Extended Range Clarity (5-String): Specifically calibrated to maintain definition on the low B-string, eliminating muddiness for a piano-like clarity across the fretboard.

Technical Specifications:

• Magnet Type: Alnico V

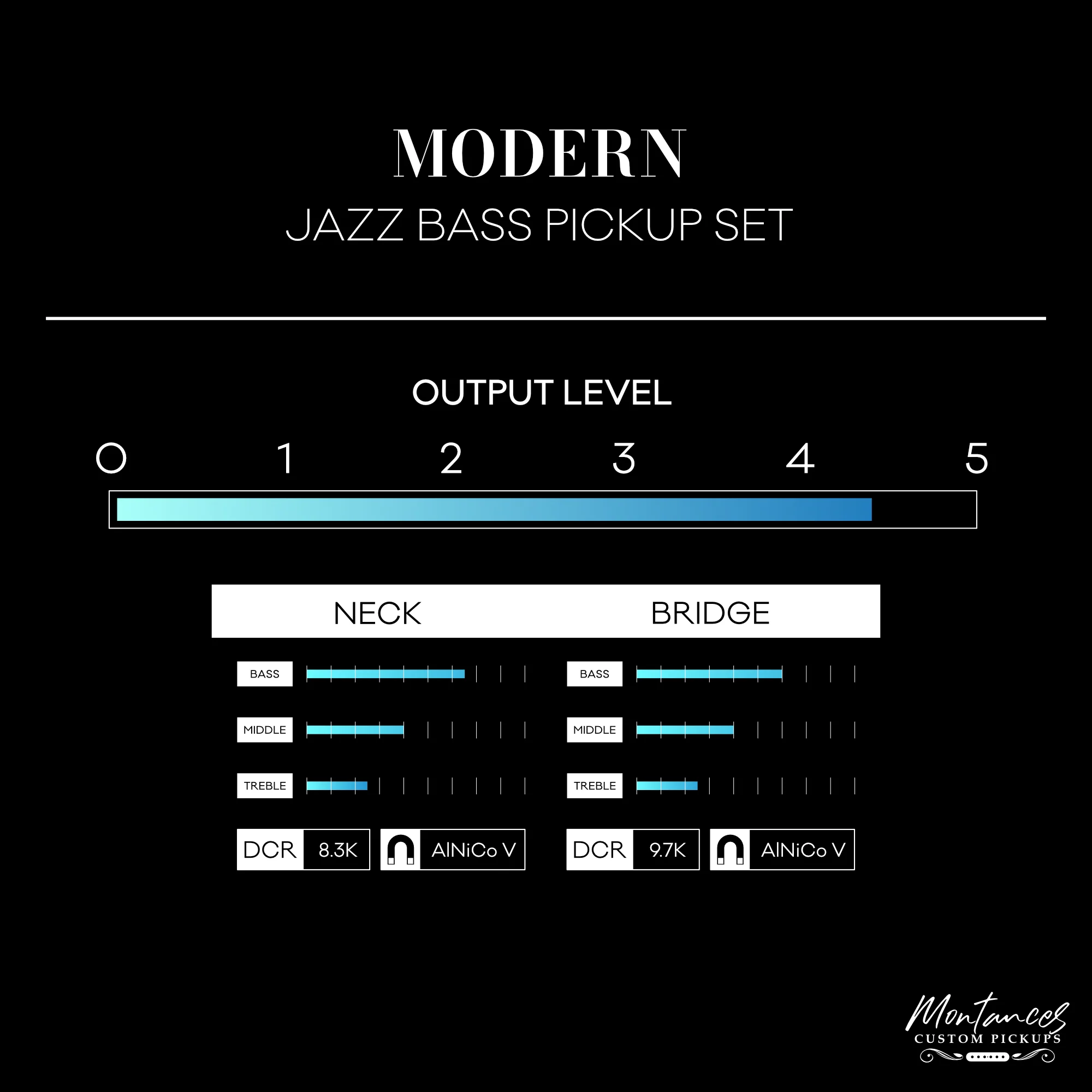

• D.C. Resistance (4-String): Neck: ~8.3kΩ / Bridge: ~9.7kΩ
• D.C. Resistance (5-String): Neck: ~10.0kΩ / Bridge: ~11.9kΩ
• Lead Wire: Vintage Cloth Push-back
• Pole Spacing (4-String): Neck: 62.5mm / Bridge: 65.0mm
• Pole Spacing (5-String): Neck: 73.6mm / Bridge: 76.9mm
• Origin: Handcrafted in the Philippines

Wiring Legend:

• Hot / Signal: White
• Ground: Black

Recommended Setup:

• Potentiometers: 250kΩ Audio Taper
• Capacitor: 0.047μF
• Wiring Options: Standard J-Bass Volume/Volume/Tone

Options Available:

• Configuration: 4-String, 5-String
• Position: Neck, Bridge, Full Set

What’s Inside?

• 1 x Montances Modern Jazz Bass Pickup (or Full Set)
• High-Quality Mounting Screws & Foam

Ideal For:

Gospel, Fusion, and Progressive Rock bassists requiring a high-fidelity, high-output signal that retains passive organic character.

Notable Artist Users:

• Rommel dela Cruz: [Barbie’s Cradle]

Frequently Asked Questions (FAQ):

• Q: Is this pickup noiseless?
• A: No. These are high-clarity single coils designed for maximum tone. While not noiseless, they are hum-canceling when both pickups are used together at equal volume.
• Q: Will the 5-string version fit my bass?
• A: The 5-string Modern set uses specific spacing (73.6mm/76.9mm). Please confirm your bass's routing dimensions, as some 5-strings vary significantly.
• Q: Why choose this over the Standard set?
• A: Choose the Modern set if you play genres requiring more "push," tighter bass response, and higher output to drive pedalboards or preamps effectively.

Montances Pickup Mastery

• Crafted for the Discerning Player: We use only the finest U.S.-grade materials. Montances pickups embody tone, precision, and artistry—crafted without compromise.
• Proprietary Winding Technique: Our signature process minimizes winding capacitance, resulting in extra tonal clarity and improved high-frequency response.
• Trusted by Masters: Leading Filipino guitarists and luthiers rely on Montances for exceptional tone and consistency.
• Where Science Meets Soul: Precision engineering combined with deep musical intuition brings our pickups to life.
• Your Experience, Elevated: We offer exceptional craftsmanship, personalized support, and perfection in every detail.
