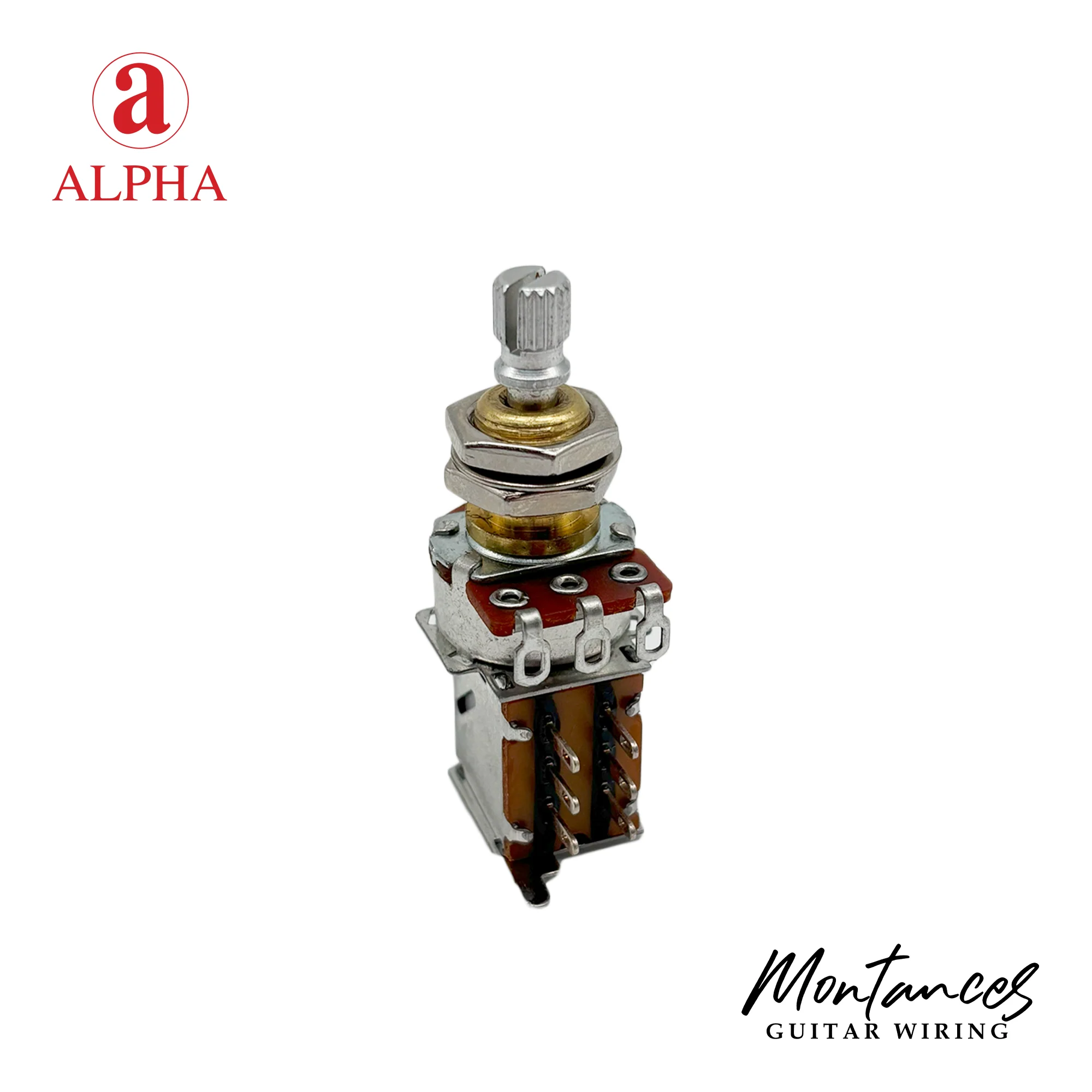

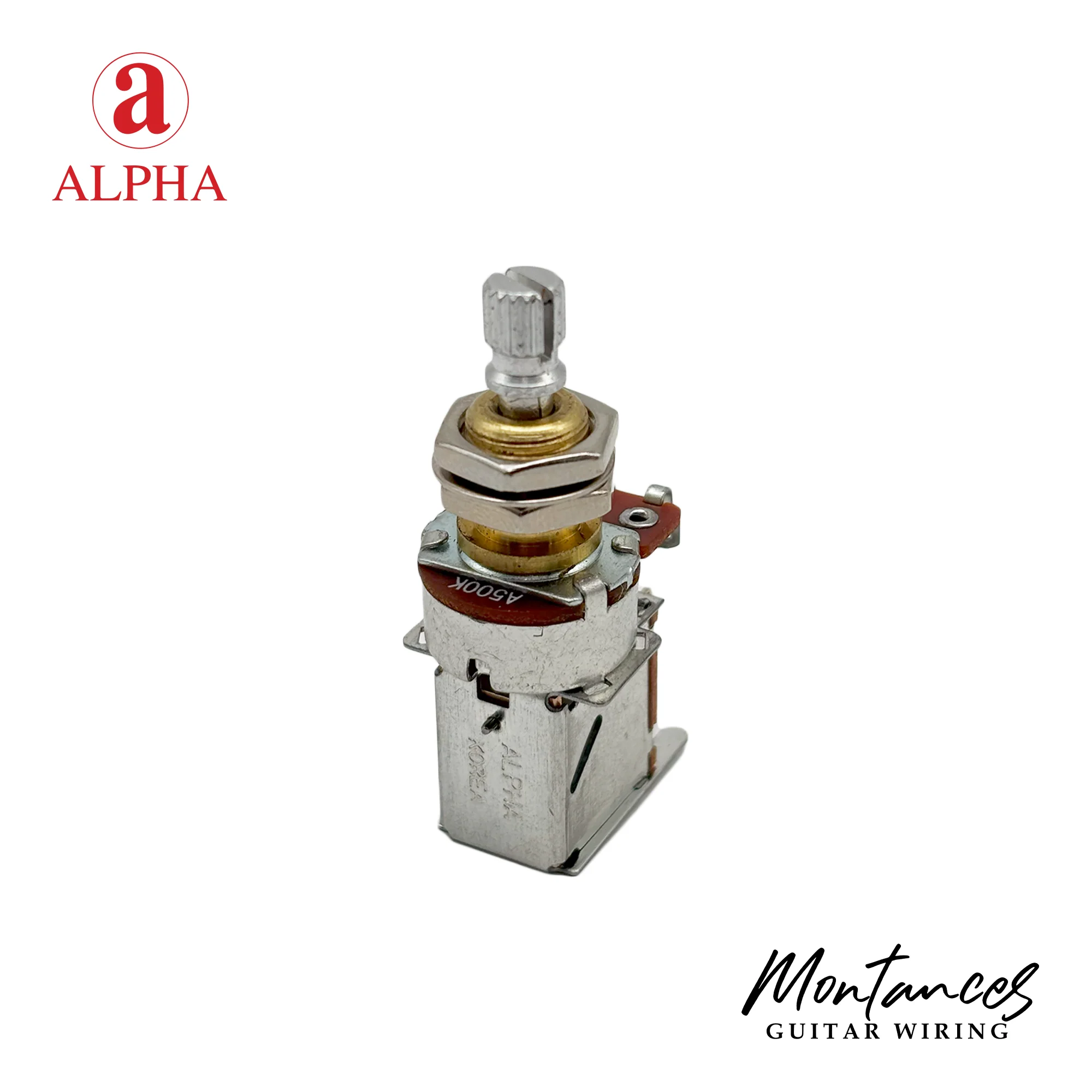

Alpha 3/8” Bushing Diameter Push-Push Potentiometer (Split Shaft)

Reliable Push-Push DPDT Pot for Coil Splits, Phase Switching, and More

This Alpha push-push potentiometer is ideal for guitar and bass wiring mods including coil splitting, series-parallel switching, and phase options. Designed with a 3/8” bushing and metric mounting diameter, it’s a versatile upgrade choice for modern and vintage builds alike.

The push-push action is smooth and reliable, making it easier to engage compared to traditional push-pull pots. Whether you're rewiring your favorite instrument or upgrading for flexibility, this pot delivers excellent feel and performance.

---

Key Features

• Push-Push DPDT switch function

• Knurled split shaft for standard push-on knobs (18-spline)

• Durable mini 17mm body housing

• Perfect for mods like coil-splitting, series/parallel, and phase switching

• Standard bushing length that fits most guitar builds

---

Specifications

• Mounting Hole Diameter: 9.5mm (US size)

• Bushing Height: 3/8”

• Pot Body: 17mm Mini Size

• Shaft Type: Knurled (Split Shaft), 18 splines

• Switch Type: DPDT (Double Pole Double Throw)

---

Available Variants

• Audio Taper 250k (Knurled split shaft)

• Audio Taper 500k (Knurled split shaft)

• Linear Taper 500k (Knurled split shaft)

Please select the appropriate type based on your pickup and mod configuration.

---

Package Includes

• 1 push-push potentiometer

• 2 sets of hex nut and washer for secure mounting

---

Notes

• The 3/8" bushing is the standard length and fits most applications.

• If you require a longer bushing, we recommend getting the 3/4" version.

• Offers the same quality and functionality as more expensive branded alternatives, at a better price.
