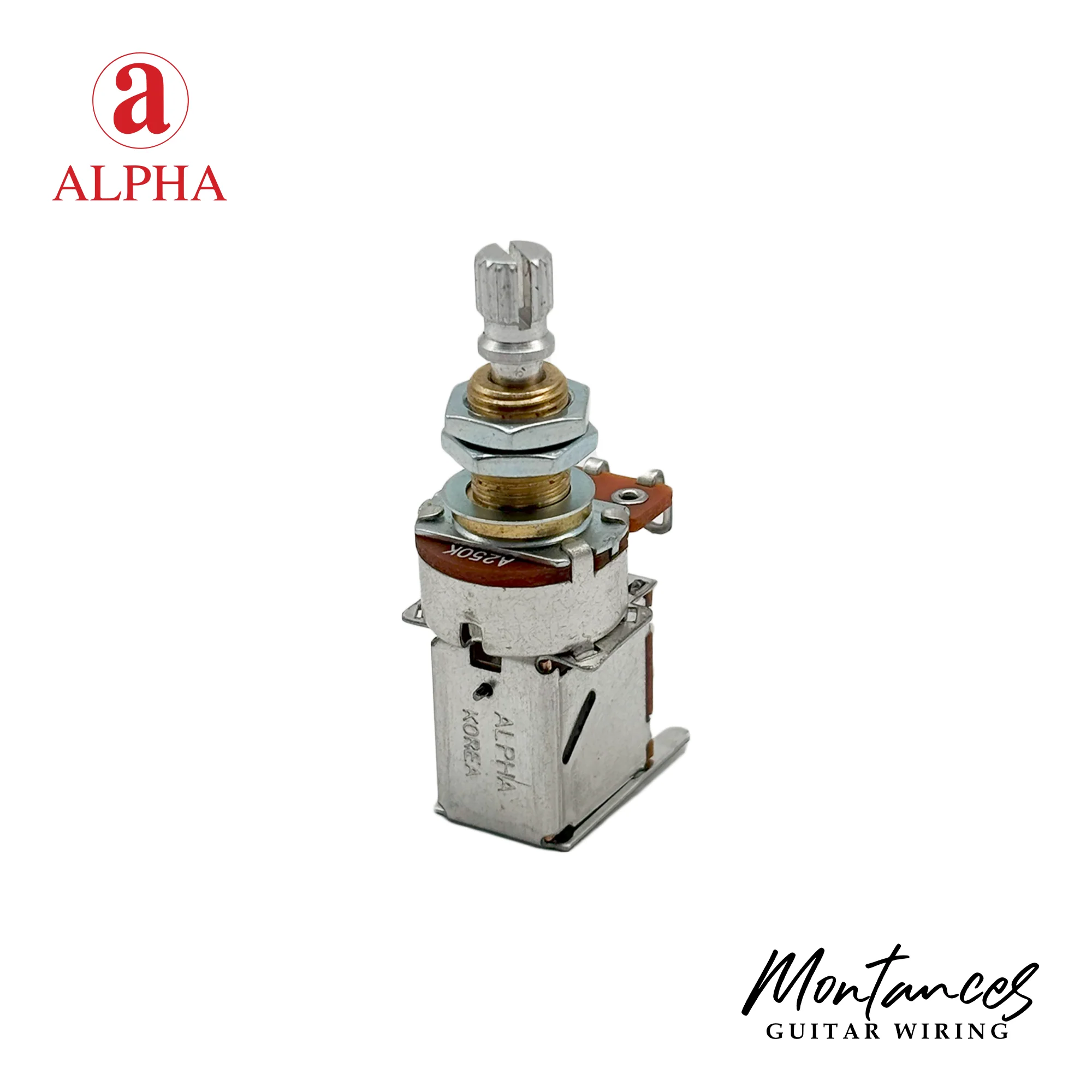

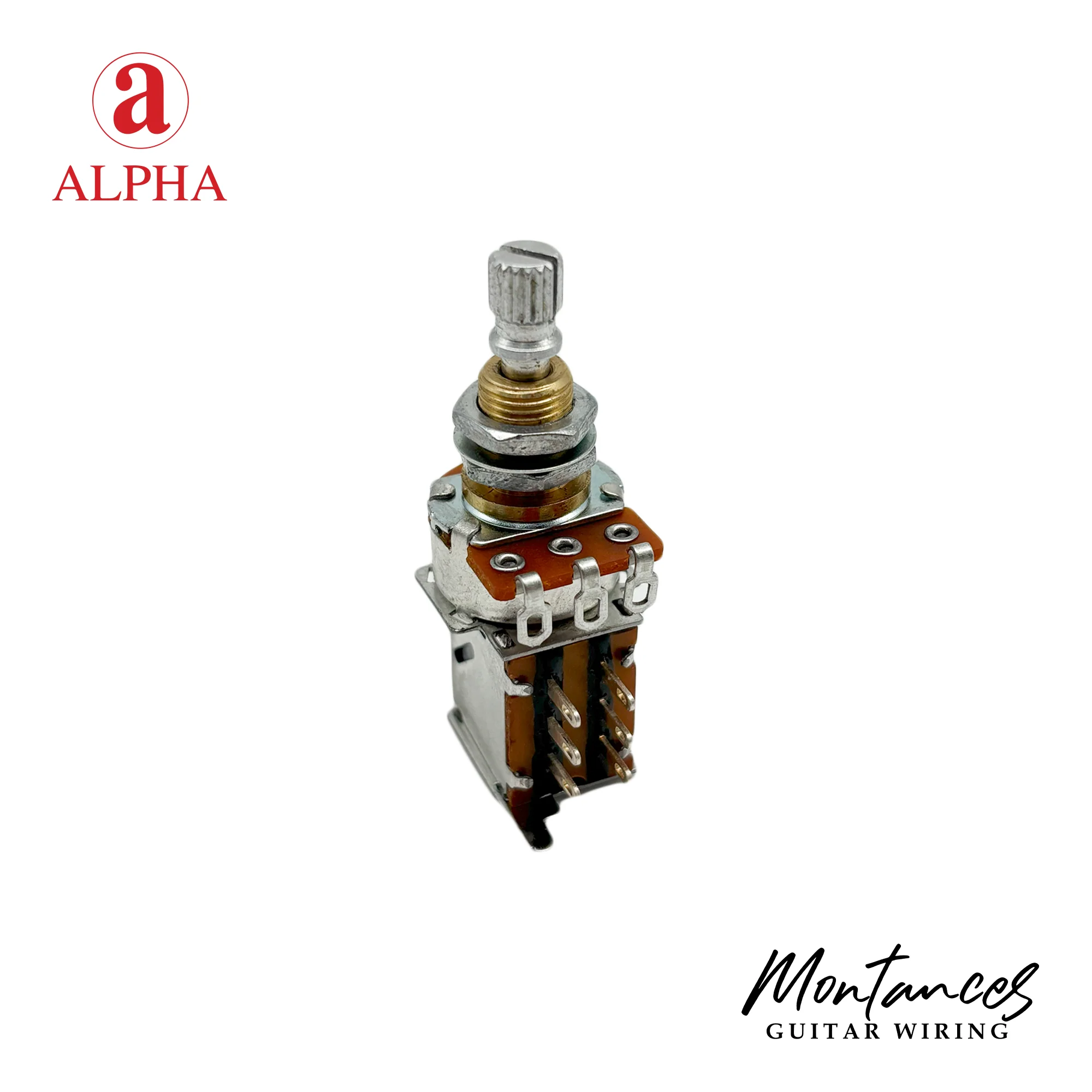

Alpha Metric 3/8” Standard Length Push-Push Potentiometer (Split Shaft)

Ideal for Coil Splits, Phase Switching, and Advanced Guitar Wiring Mods

This Alpha push-push potentiometer is a dependable choice for guitar and bass electronics upgrades. Commonly used for mods such as coil-splitting, series-parallel switching, and in-phase/out-of-phase configurations, it offers a smooth and responsive push-push action combined with a compact form factor.

It features a knurled split shaft that fits most standard push-on knobs, and a DPDT switch for flexible wiring options.

---

Key Features

• Push-push DPDT switch for easy engagement

• 17mm mini body fits compact control cavities

• 3/8” bushing height suits most guitar builds

• Knurled split shaft with 18 splines for standard knobs

• Great for coil splitting, phase reversal, and series-parallel mods

---

Technical Specifications

• Mounting Hole Diameter: 8.0mm (Metric)

• Bushing Height: 3/8"

• Body Size: 17mm (Mini)

• Shaft Type: Knurled (Split), 18 splines

• Switch Type: DPDT

---

Available Options

• Audio Taper 250k

• Audio Taper 500k

• Linear Taper 250k



• Linear Taper 500k

All options have knurled split shafts and are sold individually.

---

Package Includes

• 1 push-push potentiometer

• 2 sets of hex nut and washer

---

Notes

• This 3/8" bushing fits most common control plates and body depths

• For thicker tops or pickguards, consider the 3/4” bushing version

• Offers reliable performance at a great value
